CBI E/Leakage SP 60A

N$836.43

CBI E/Leakage SP 60A

SKU: 160.102 Category:

Description

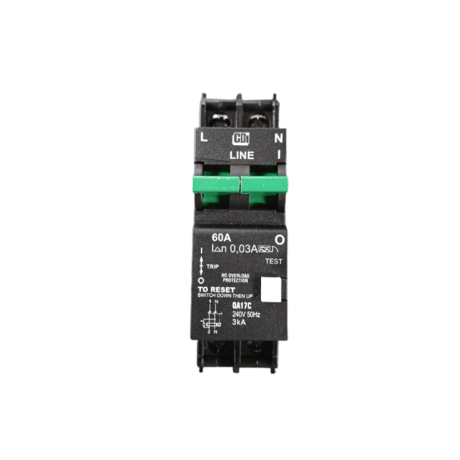

CBI Earth Leakage Single Pole 60 A

Features

  • Hydraulic-Magnetic technology
  • 100% rating capability, independent of ambient temperature
  • VC 8035 compliant
  • VDE and CCC approved, CE certified
  • Ratings 5 to 63 A
  • Earth leakage sensitivity 30 mA
  • Single pole plus switched neutral earth leakage protection
  • Switch versions fitted with short circuit protection
  • Available in various currents and time delays
  • Precision tripping characteristics
  • Compact 26 mm wide module
  • Trip indication with mid-trip position
  • Reset immediately after overload
  • Suitable to use for electrical isolation
  • Shell designed for easier installation onto busbar

Application

  • Residential and commercial applications requiring high sensitivity earth leakage protection from electrical shock and fire hazards
  • Earth Leakage protection (IEC / EN 60947-2)
  • Telecom / Datacom equipment
  • Lighting control
  • UPS equipment
  • Alternative energy equipment
  • Mobile power generation equipment
  • Railway signalling equipment
  • Industrial equipment
